A2071
330lb Heavy Duty Drawer Slides
330lb loading capacity heavy duty drawer slides is a side mount full extension ball bearing drawer slides. It can be use to car modification, industrial equipment, and vending machines that are prone to shaking and instability.
|
Load bearing |
330 lb / 150 kg (18") |
Slide length |
10″ - 80″ |
|
Material |
Cold-rolled steel/Q235 |
Slide width |
71 mm |
|
Installation Gap |
18.5±0.5 mm |
Material Thickness |
2.5*2.2*2.5 mm |
|
Mounting type |
Side Mount |
Level of travel |
Full Extension |

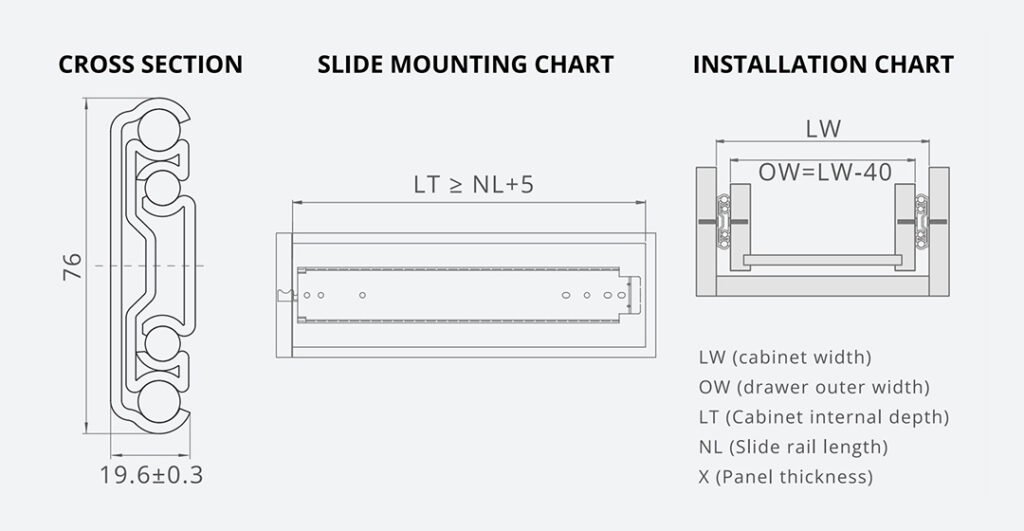

Heavy duty drawer slides Specification
Heavy duty drawer slides Advantage
- Full Extension Design Easy to Stored
The full-extension, three-section drawer slides design allows you to pull the drawer completely out, ensuring easy access to all stored items without any hassle. - Supports Up to 500 lbs
Crafted from 2.5mm thick Q235 cold-rolled steel, these slides offer exceptional strength and durability, supporting up to 500 pounds. Built to withstand even the heaviest loads without bending or warping. - Long Use Life
Drawer slide manufacturer will conduct random inspections on each batch of heavy duty drawer slides, and let the heavy duty drawer slides be pulled out under full load to ensure a lifespan of at least 50,000 times. - Double Anti-rust
The surface of the slide rail is treated with galvanized blue sealing process, which isolates the rail from direct contact with air and water, and increases anti-oxidation and anti-corrosion. Easy to clean and wide range of utility.
Heavy duty drawer slides Application Industry
Automotive Manufacture/Modification
Precision Machinery
Hardware Shop
